Graviner OMD Mk6 Oil Mist Detector In Stock

Brand: Kidde Graviner

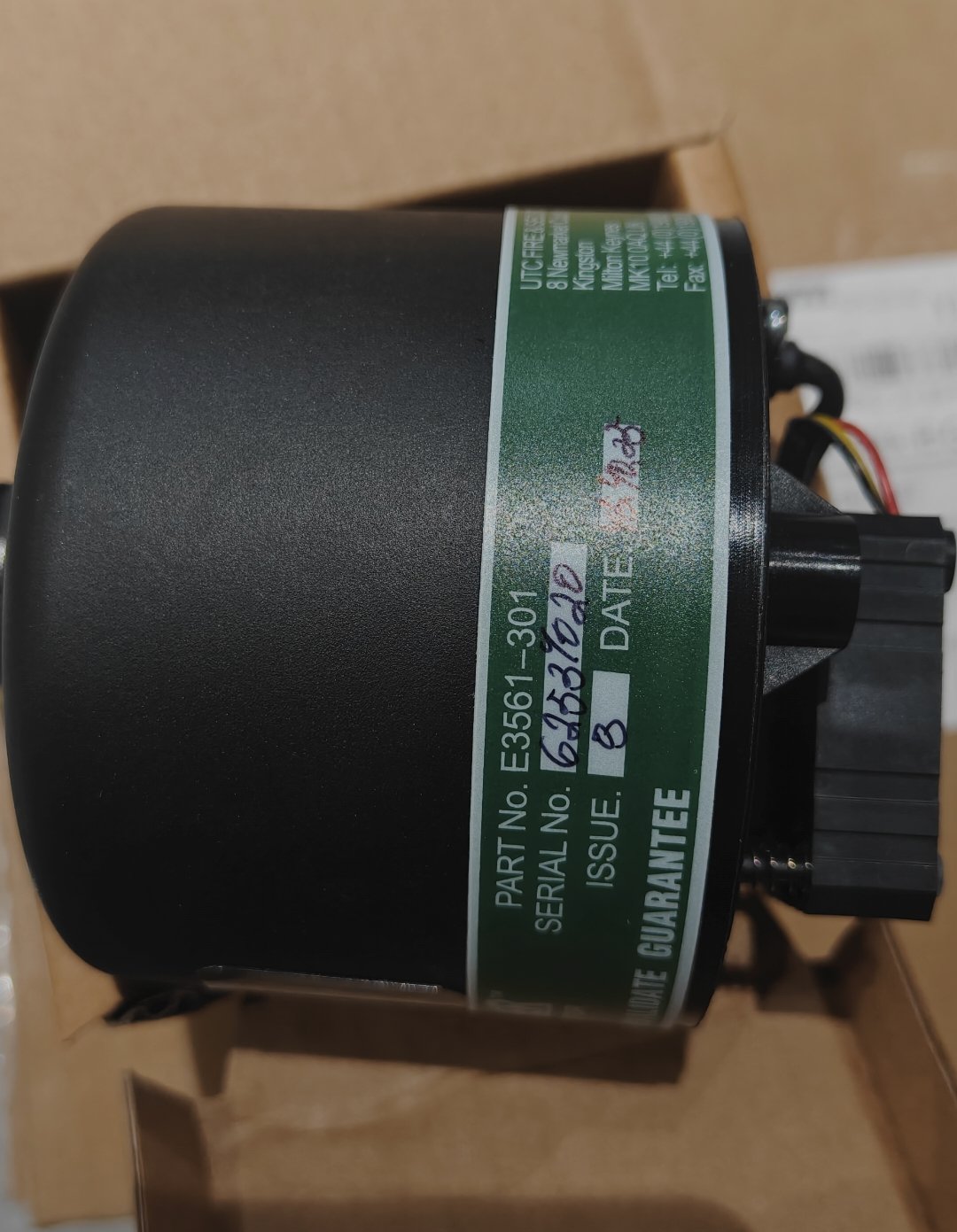

Part No: E3561-301  |  Serial No: 61537020

Condition: Brand New (Original)

The Graviner MK6 Oil Mist Detector (OMD) is a proven crankcase protection system for marine diesel engines. It continuously monitors oil mist density inside the engine crankcase, providing early warning of abnormal conditions such as bearing overheating or piston seizure — before they develop into dangerous crankcase explosions.

Key Features

• Optical light scattering technology (differential measuring system)
• Detects average crankspace oil mist densities between 0.3 mg/L and 1.3 mg/L
• High false-alarm rejection for reliable operation
• 24V DC operation, low power consumption
• IP65 rated, rugged engine-mounted design
• Suitable for 2-stroke and 4-stroke diesel engines
• Approved by all major classification societies
• In service on thousands of vessels worldwide

Specifications

Model	MK6 Oil Mist Detector (Detector Head with base)
Part No	E3561-301
Detection Method	Optical light scatter (differential measuring)
Sensitivity	0.3–1.3 mg/L average crankspace density
Operating Voltage	24V DC
Protection	IP65
Operating Temperature	0–70°C
Manufacturer	Kidde Graviner / UTC Fire & Security

Applications: Main propulsion engines and auxiliary generators on container ships, tankers, bulk carriers, offshore vessels, LNG/LPG carriers and passenger ships.
